Universal Chat Integration

5 min read

To integrate Universal Chat to your web page, you should take the following steps:

  • Setup a brand. In Universal Chat Settings you can customize how the universal chat behaves and looks. You also can list domains that are allowed to include Universal Chat.
  • Include integration code into your web page. Use the code that you get form Universal Chat Settings and paste it into your web page to show the web chat to the customer.
  • Pass customer ID to the chat. This is optional but highly recommended as it enables to link the customer to their data.

Setup a Brand

You can set up a Universal Chat brand directly in the Salted CX app. The brand enables you to customize the behavior and look of the chat. You can set up multiple brands to provide different customer experiences for different segments of your customers.

icon
Ensure that your domains where Universal Chat is to be used are added in the brand setup. Salted CX prevents using Universal Chat connected to your account on domains not listed in the brand setup.

Include Code in Page

Copy the integration code for the brand of your choice from Universal Chat Settings and paste into into your web page. The code has two parts. Include the following snippet in the head section of the HTML file:

<script type="module" src="https://saltedcx.github.io/universal-chat-web-component/universal-chat.js"></script>

Place the following code at the end of your body of your HTML file:

<universal-chat accountid="<domain name in Salted CX without region>" brandId="<unique identifier of the brand from Universal Chat brand settings>"></universal-chat>

Make sure you list your website domain in the allowed domains section of the settings. The brand can only be embedded into the domains you list there.

Example of implementation using JavaScript only
const scriptElement = document.createElement('script');
scriptElement.type = 'module';
scriptElement.src = 'https://saltedcx.github.io/universal-chat-web-component/universal-chat.js';

const chatElement = document.createElement('universal-chat');
chatElement.setAttribute('accountid', '<domain name in Salted CX without region>');
chatElement.setAttribute('brandId', '<unique identifier of the brand from Universal Chat brand settings>');

document.body.appendChild(scriptElement);
document.body.appendChild(chatElement);

Pass Customer Data to Chat

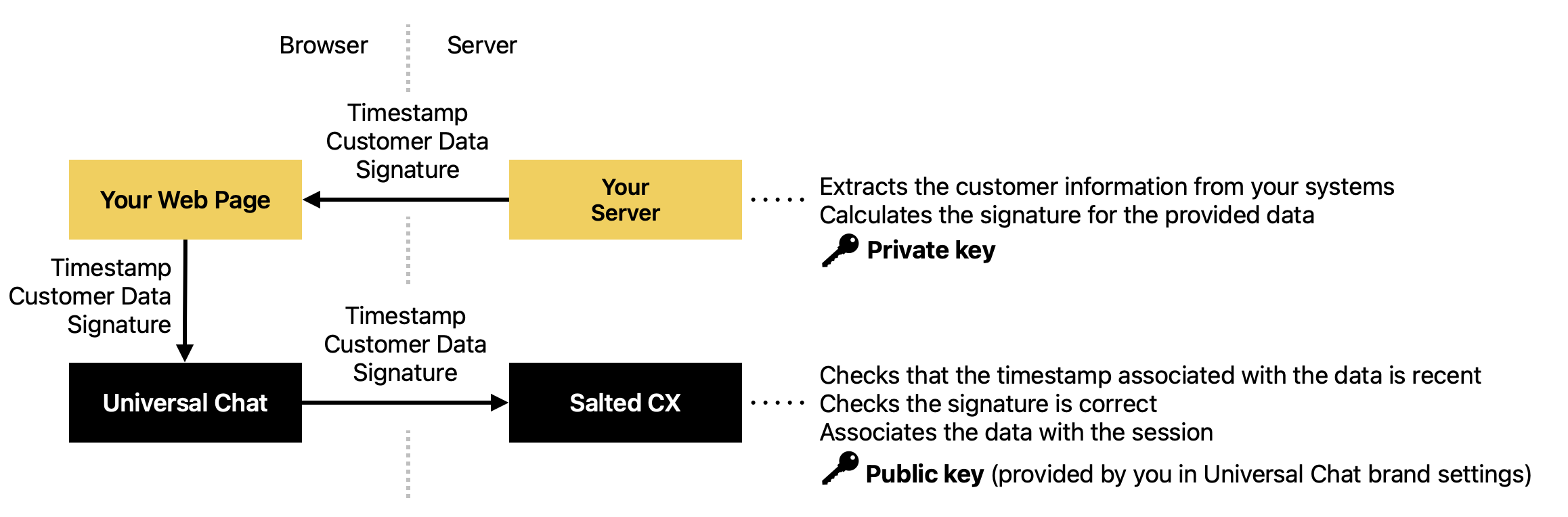

Passing customer data enables linking the chat session to a specific customer. This enables Your Logic and human agents to access the customer data. Salted CX requires that you digitally sign the data in a save environment (server side) so the bad actor cannot impersonate somebody else. Salted CX verifies the data on the server side as well.

Custom Data Format

You need to provide the data in a format supported by Universal Chat. The data are in JSON format.

The payload

PropertyTypeDescription
conversationObject
customerObject

Conversation Object

Properties in the conversation object:

PropertyTypeDescription
customerJSON

Customer Object

Properties in the customer object.

PropertyTypeDescription
contactContact ObjectThe contact this chat session is associated with. This can be either an internal customer ID or some global identifier such as email.
displayNameStringName of the customer that agents will see. This name SHOULD not contain protected personal information. We recommend using the first name. The length of the value is limited to 100 characters.
relatedContactsArray of ContactsThe list of related contacts to the customer. These contacts enable to link the customer to other conversations in the customer journey. So if you have a past conversations in other channels you will see them in the customer journey with the current Universal Chat session. Learn more about Customer Profile

Contact Object

Properties in the contact objects.

PropertyTypeDescription
typeStringType of the contact. Use Email and Phone value for emails and phones. You can use other values to distinguish the contact type, for example Customer ID for internal customer IDs.
externalIdStringThe actual contact information — ID, phone, email, value. The length of the value is limited to 100 characters.
{
	 "conversation": {
		  "custom": {
		  }
	  }

	"customer": {
		"contact": {
			"type": "Customer ID",
			"externalId": "9e065dd3-14e2-4c67-832c-03b320be65c1"
		},
		"displayName": "Carmen",
    "firstName": "Carmen",
    "lastName": "Sanchez",
    "language": "en",
		"relatedContacts": [
			{
				"type": "Email",
				"externalId": "carmen.sanchez@email.com"
			},
			{
				"type": "Phone",
				"externalId": "+420123456789"
			}
		]
	}
}
Example customer data payload
icon
Do NOT include any data that you do not want your customers to see. The customer can see the payload of the data. Customers cannot tamper with the data due to the digital signature.

Create a JWT token

To pass data to Salted CX, you need to create a JWT token that contains the customer data, expiration time, signature, and a few other properties required by JWT.

  • Generate a private and public key pair.
  • Store your private key in your secrets manager where your server code can access it.
  • Paste your public key for verifying the signature of the requests. Go to Universal Chat settings and paste the value Customer Data Signature Key.

Once you have encryption keys setup you need to implement creation of JWT token with the desired payload.

{
  "header": {
    "alg": "RS256",
    "typ": "JWT"
  },
  "payload": {
	  "conversation": {
		  "custom": {

		  }
	  }

    "customer": {
      "contact": {
        "type": "Customer ID",
        "externalId": "9e065dd3-14e2-4c67-832c-03b320be65c1"
      },
      "displayName": "Carmen",
      "firstName": "Carmen",
      "lastName": "Sanchez",
      "language": "en",
      "relatedContacts": [
        {
          "type": "Email",
          "externalId": "carmen.sanchez@email.com"
        },
        {
          "type": "Phone",
          "externalId": "+420123456789"
        }
      ]
    },
    "iat": 1730314320,
    "exp": 1730400720
  },
  "secret": "your-256-bit-secret"
}
Example JWT token containing the payload
Example JavaScript code for generating a JWT token
import fs from "node:fs";
import path from "node:path";

import { importPKCS8, SignJWT } from "jose";
import { v4 as uuidv4 } from "uuid";

async function generateSaltedCXToken(customerData) {
	try {
		const privateKeyPEM = fs.readFileSync(path.join("private.key"), "utf8");
		const privateKey = await importPKCS8(privateKeyPEM, "RS256");

		return await new SignJWT(customerData)
			.setProtectedHeader({ alg: "RS256", kid: "key-1" })
			.setIssuedAt()
			.setExpirationTime("24h")
			.sign(privateKey);
	} catch (error) {
		console.error("Error generating JWT token for Salted CX:", error);
	}
}

const jwtToken = generateSaltedCXToken(
		{
			customer: {
				contact: {
					type: "Customer ID",
					externalId: uuidv4(),
				},
				displayName: "Display Name",
				relatedContacts: [
					{
						type: "Email",
						externalId: "customer@email.com",
					},
					{
						type: "Phone",
						externalId: "+420123456789",
					},
				],
			},
		});
icon
Always create the JWT token with customer data in a secure, controlled environment that the customer cannot access (e.g., a server). Do NOT generate it in the browser on the customer side.

Pass Customer Data via JavaScript

You need to have the JWT token available on the client side (browser) to pass to Salted CX. The exact way to make it available depends on the tech stack that you are using. Your JavaScript code can retrieve it using AJAX, from cookies or local storage, or any other method that works in your environment.

Once you have the JWT token available in the browser, you can pass it to Salted from the browser.

window.SaltedCX.setContext(jwtToken);
Example code to pass the customer data to Salted CX
